Indoor Patch Cord

June 15th, 2026 Posted by Juan No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

Description

Fiber optic indoor patch cable using simplex single-mode fiber, designed for reliable indoor connectivity.

Features

Connector options
Custom cable length available
Stable performance with low signal loss

Model No.: GPI-XX/XX-Y

XX: Connector type
Y: Cable length

Outdoor Patch Cord

June 15th, 2026 Posted by Juan No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

Fiber optic outdoor patch cord designed for FTTA applications. Built with simplex single-mode fiber (G.657.A2) for reliable performance in outdoor environments.

Feature

Ideal for FTTA (Fiber to the Antenna) deployment
Direct connection to fiber distribution box output ports
Connector options: SC/APC, SC/PC
Compatible with Mini SC, Corning OptiTap, and Furukawa Slim adapters
Customizable cable length to meet project requirements
Durable design for outdoor use

Technical Specifications

Item	Unit	Parameter
Insertion Loss	db	≤ 0.3
Return Loss	db	≥ 60
Durability (1000 mating)	db	Max 0.2
Operation Temperature	°C	-40 to +75
Storage Temperature	°C	-40 to +85
Waterpfroof	–	IP86

Model Information: Model No.: XX/Y

XX: Connector type
(SC/APC, SC/PC, Mini-IP Fast, 3-in-1, Cable-through head, Open end)
Y: Cable length

Cable Tie

June 15th, 2026 Posted by Juan No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

Features

Flame-retardant (UL 94 V-0 rated)
UV-resistant for outdoor durability
UL listed for safety compliance

Model No.	Width × Length (mm)	Length (inch)	Min. Tensile Strength (lbs)
GT-4	2.5 × 100	4″	18
GT-8	4.8 × 200	8″	50
GT-11	4.8 × 280	11″	50

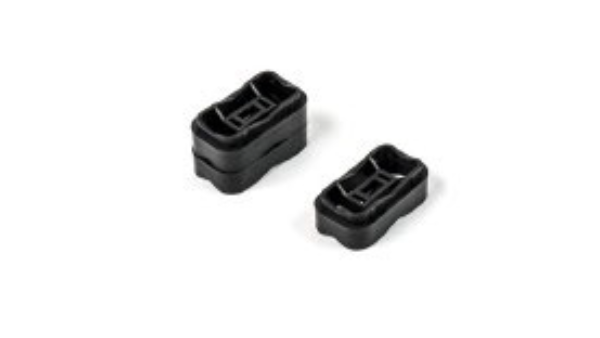

GDTS-011 Cable Spaces

June 15th, 2026 Posted by Juan No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

Technical Information:

Material: Weather-resistant Polypropylene
Temperature Range: -40°C to +85°C
Color: Black
Properties: UV-resistant, halogen-free

Features

Stackable design in 12.7 mm increments for flexible spacing
Eliminates need for multiple spacer sizes

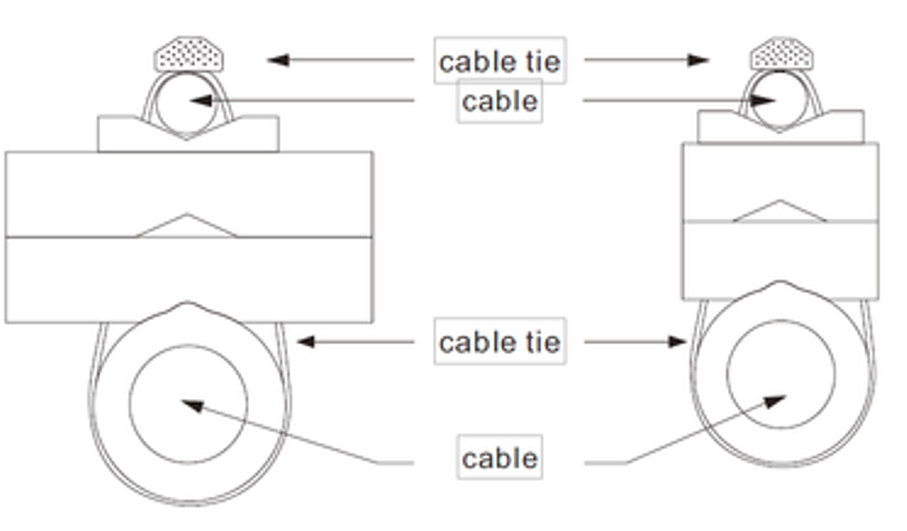

Rotatable 90° to accommodate larger or multiple cables
Secure strap retention on both sides with cable cradle support
Restricts movement to maintain cable positioning
Protects cable surface from damage
Suitable for parallel or perpendicular routing
Compatible with various telecommunication cables

Dimensions

Length: 52.9 mm (2.08″)
Width: 29.5 mm (1.16″)
Height: 12.7 mm (0.5″)

Cable Raceway for mini fiber drop cable

June 15th, 2026 Posted by Juan No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

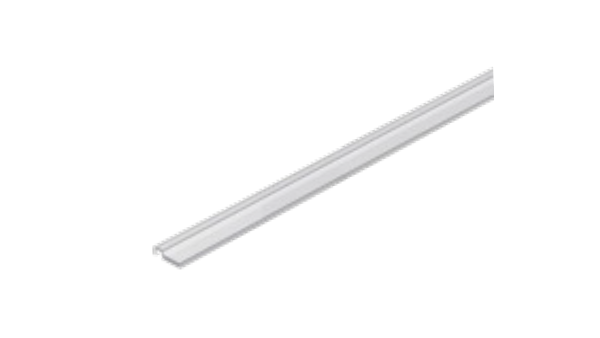

Cable Raceway for mini fiber drop cable

Length: 30 cm
Color: Transparent
Compatible Cable Size: 2.0 × 1.6 mm

GD-2016/30

GD-2016P

GD-5D

Cable Clips

June 15th, 2026 Posted by Juan No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

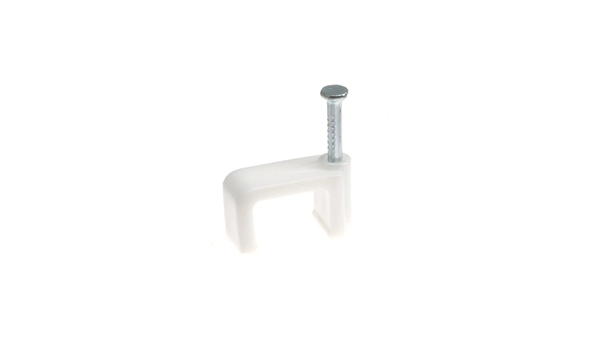

Cable Clips for fiber drops cable

Key Features:

Made of PE material with high elasticity and impact resistance
Inserting type design with pre-attached nail
Easy and secure installation
Available colors: White or Black

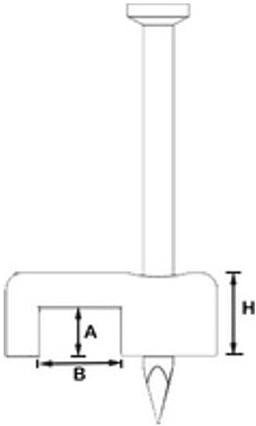

Model No.	Height (mm)	A (mm)	B (mm)	Nail (mm)	Suitable for Fiber Drop Cable
GCD-2.5	3.5	2	2.5	1.4 × 15	Indoor drop cable 2.0 × 3.0 mm
GCD-5	5.5	3.5	5	1.7 × 14	Indoor drop cable 2.0 × 5.0 mm

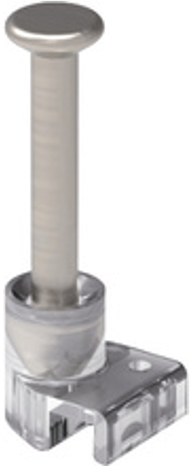

Cable Clips – for mini fiber drop cable

Key Features:

Made of PE material with high elasticity and impact resistance
Inserting type design with pre-attached nail
Easy and secure installation
Transparent color for minimal visual impact

Model No.	A (mm)	B (mm)	Suitable for Mini Fiber Drop Cable
GC-2.0	1.6	2	Indoor drop cable 2.0 × 1.6 mm
GC-1.6	1.2	1.6	Indoor drop cable 1.6 × 1.2 mm

Fusion Splice Protection Sleeves

June 8th, 2026 Posted by Juan No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

Key Features:

Protects fusion splices from mechanical stress and environments factors
Stainless steel for for excellent tensile strength
Heat-shrinkable outer tube for superior sealing and duratibity
Easy and fast installation
Available in multiple lengths to suit various applications
Reliable performance for long-term network stability

Specifications

Model No.	Length(mm)	Inner Tube Diameter(mm)	Outer Tube Diameter(mm)	Steel Diameter(mm)	Steel Material	Color
GDI-FSPS-6154B	61/54	1.5	2.5 ± 0.1	1.2	304	Clear
GDI-FSPS-4540B	45/40	1.5	2.5 ± 0.1	1.2	304	Clear
GDI-FSPS-6154C	61/54	1.5	2.4 ± 0.1	1	304	Clear
GDI-FSPS-4540C	45/40	1.5	2.4 ± 0.1	1	304	Clear
GDI-FSPS-4035C	40/35	1.5	2.4 ± 0.1	1	304	Clear

Fast Connector SC APC (UPC)

June 8th, 2026 Posted by Juan No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

Pre-polished fast connectors designed for quick and reliable fiber termination. Compatible with single-mode fiber and various cable types including 0.9 mm tight buffer, 2 mm, and 3 mm drop cables. No adhesive or curing process required, allowing easy rework and reducing installation errors.

Key Features

Factory-installed fiber stub for consistent performance
Fast, easy field installation — no special tools required
Reusable and reworkable design reduces failure rates
No splicing or adhesive needed
Compatible with multiple cable sizes (0.9 / 2 / 3 mm)
Low insertion loss and high return loss
Reliable optical performance for stable connections

Standard Fast Connector

Specifications

Item	Unit	Parameter
Insertion Loss	dB	Max ≤ 0.5, Avg ≤ 0.3
Return Loss	dB	≥ 45
Durability (1000 mating)	dB	Max 0.2
Operating Temperature	°C	-40 to +75
Storage Temperature	°C	-40 to +85

FC-SC/APC-A / FC-SC/UPC-A

Specifications

Item	Unit	Parameter
Insertion Loss	dB	0.2
Return Loss	dB	≥ 45
Durability (1000 mating)	dB	Max 0.1
Operating Temperature	°C	-40 to +80
Storage Temperature	°C	-40 to +85

Galvanized Steel Wire Strand

June 5th, 2026 Posted by Juan No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

High-strength galvanized steel wire strand designed for durability and long-term outdoor performance. Suitable for a wide range of applications including power transmission and telecommunications.

Applications:

Power transmission lines
Overhead conductors
Communication cables
Power distribution poles
Messenger strand / stay wire / guy wire / earth wire
ACSR cables
Agricultural and fencing applications (cattle, greenhouse, etc.)

Product Range

Diameter	Wires	Strength	Zin Coating
1/8″ – 3/4″	3-19	Up to 58,300 lbs	A /B / C

Small

Diameter

Diameter	1/8″ – 3/16″
Wires	7
Strength	1330 – 2850 lbs
Zin Coating	A / B / C

Medium

Diameter

Diameter	7/32″ – 9/32″
Wires	3-7
Strength	3500 – 8950 lbs
Zin Coating	A / B / C

Large

Diameter

Diameter	5/16″ – 7/16″
Wires	7
Strength	6350 – 20800 lbs
Zin Coating	A / B / C

Extra Large

Diameter

Diameter	1/2″ – 3/4″
Wires	7 – 19
Strength	24500 – 58300 lbs
Zin Coating	A / B / C

Lite Tension Dead-End

June 5th, 2026 Posted by Juan No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

Key Features

Ideal for short spans and low mechanical loads
High-strength aluminum alloy wire for superior durability
Fast and easy installation
Neoprene-coated rods for added protection
ID tags indicate cable diameter
Designed for fiber optic cable support
Color-coded markings for easy identification

Model No.	For Cable Diameter				Length (L)		Color Mark
Model No.	Min (inch)	Max (mm)	Min (mm)	Max (inch)	Inch	Meter	Color Mark
GDE-89/91	0.35	0.36	8.9	9.1	24	0.61	Black
GDE-95/105	0.37	0.41	9.5	10.5	28	0.71	Red
GDE-106/116	0.41	0.45	10.6	11.6	31	0.79	Orange
GDE-117/128	0.46	0.50	11.7	12.8	33	0.84	Green
GDE-129/141	0.50	0.55	12.9	14.1	37	0.94	Pink
GDE-142/156	0.55	0.61	14.2	15.6	42	1.07	Yellow
GDE-157/173	0.61	0.68	15.7	17.3	45	1.14	Blue
GDE-174/191	0.68	0.75	17.4	19.1	49	1.24	Brown
