Pre-polished fast connectors designed for quick and reliable fiber termination. Compatible with single-mode fiber and various cable types including 0.9 mm tight buffer, 2 mm, and 3 mm drop cables. No adhesive or curing process required, allowing easy rework and reducing installation errors.
Key Features
- Factory-installed fiber stub for consistent performance
- Fast, easy field installation — no special tools required
- Reusable and reworkable design reduces failure rates
- No splicing or adhesive needed
- Compatible with multiple cable sizes (0.9 / 2 / 3 mm)
- Low insertion loss and high return loss
- Reliable optical performance for stable connections

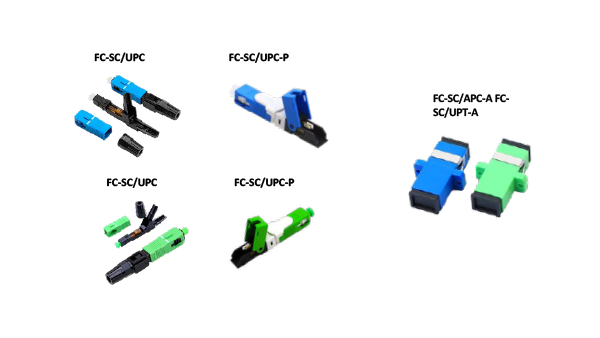

Standard Fast Connector
Specifications
| Item | Unit | Parameter |
| Insertion Loss | dB | Max ≤ 0.5, Avg ≤ 0.3 |
| Return Loss | dB | ≥ 45 |
| Durability (1000 mating) | dB | Max 0.2 |
| Operating Temperature | °C | -40 to +75 |
| Storage Temperature | °C | -40 to +85 |
FC-SC/APC-A / FC-SC/UPC-A
Specifications
| Item | Unit | Parameter |
| Insertion Loss | dB | 0.2 |
| Return Loss | dB | ≥ 45 |
| Durability (1000 mating) | dB | Max 0.1 |
| Operating Temperature | °C | -40 to +80 |
| Storage Temperature | °C | -40 to +85 |
