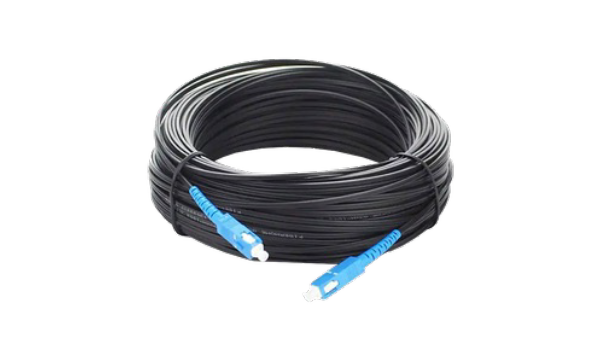

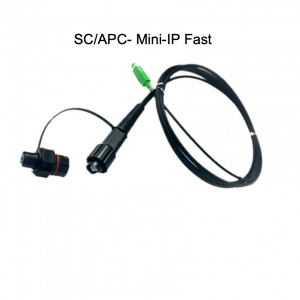

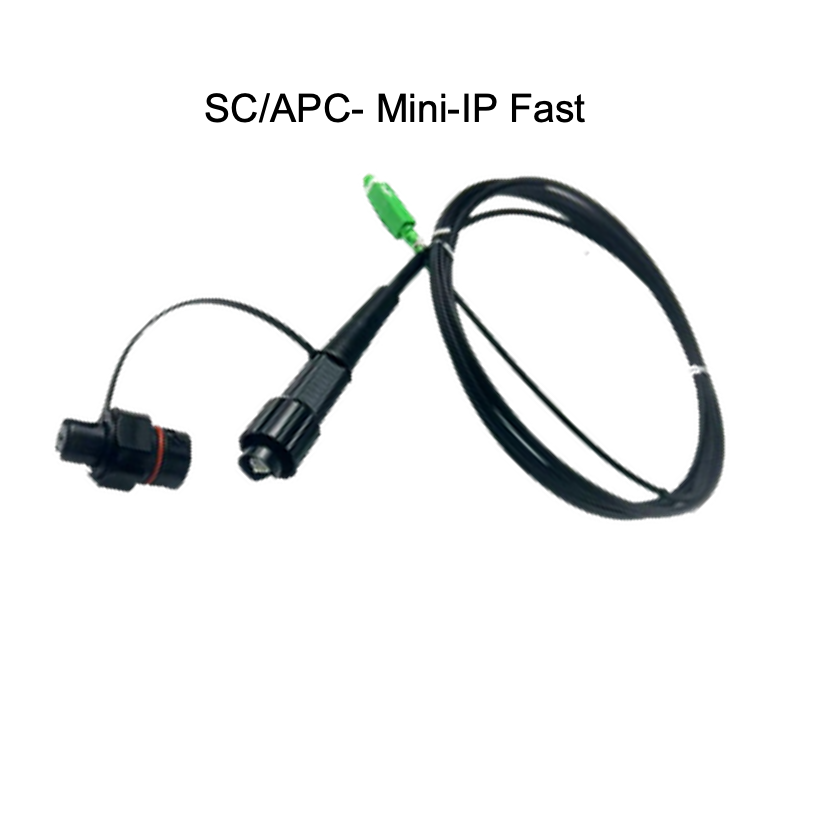

Fiber optic outdoor patch cord designed for FTTA applications. Built with simplex single-mode fiber (G.657.A2) for reliable performance in outdoor environments.
Feature
- Ideal for FTTA (Fiber to the Antenna) deployment
- Direct connection to fiber distribution box output ports

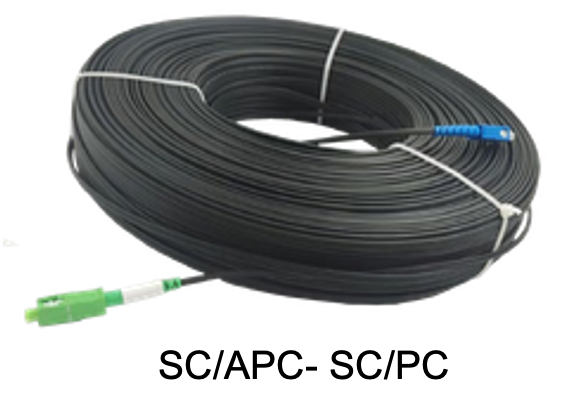

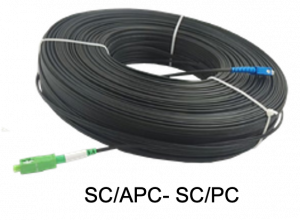

- Connector options: SC/APC, SC/PC
- Compatible with Mini SC, Corning OptiTap, and Furukawa Slim adapters
- Customizable cable length to meet project requirements
- Durable design for outdoor use
Technical Specifications
| Item | Unit | Parameter |
| Insertion Loss | db | ≤ 0.3 |
| Return Loss | db | ≥ 60 |
| Durability (1000 mating) | db | Max 0.2 |
| Operation Temperature | °C | -40 to +75 |
| Storage Temperature | °C | -40 to +85 |
| Waterpfroof | – | IP86 |
Model Information: Model No.: XX/Y
- XX: Connector type

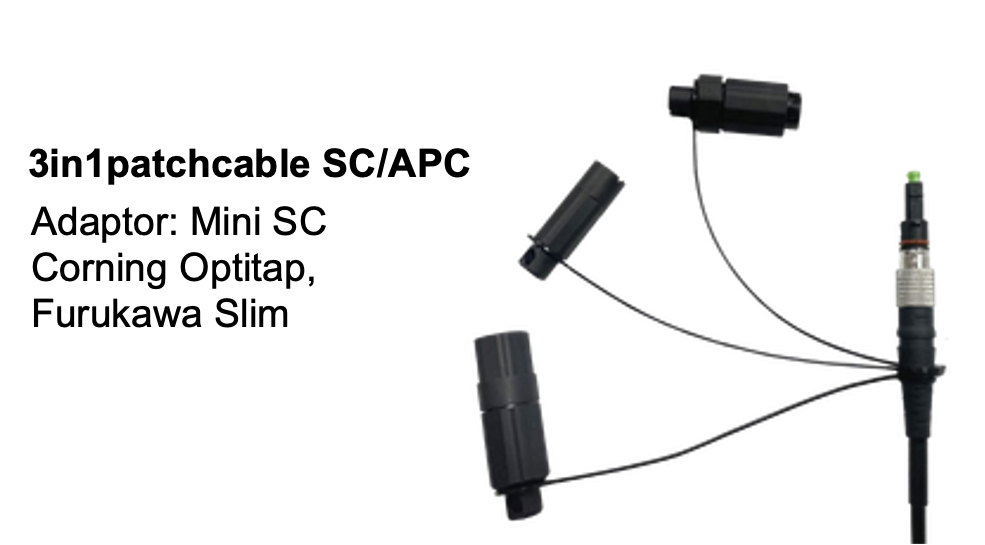

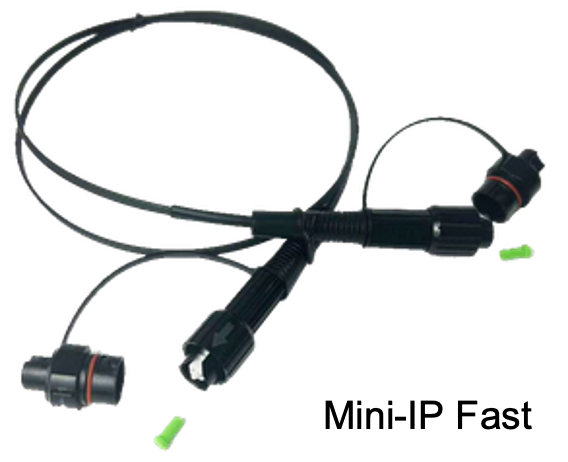

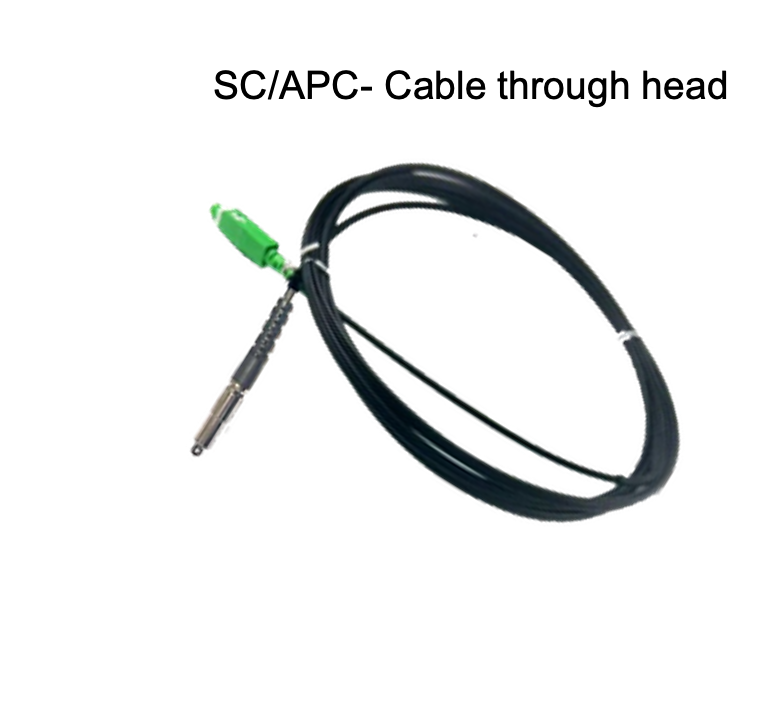

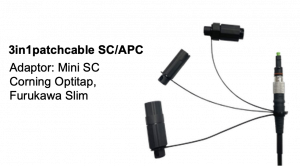

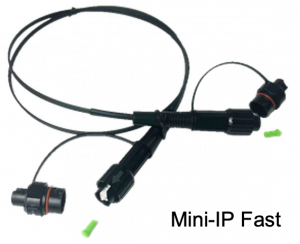

- (SC/APC, SC/PC, Mini-IP Fast, 3-in-1, Cable-through head, Open end)
- Y: Cable length
