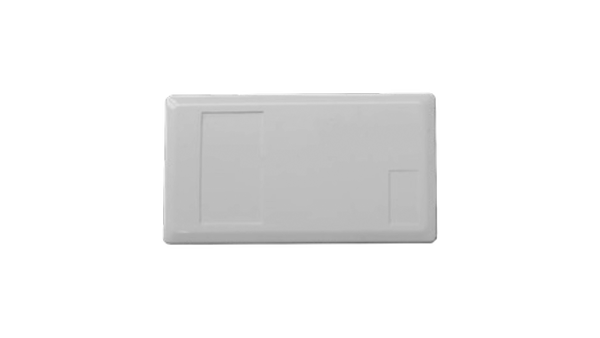

GTTH-808 Wall outlet

June 19th, 2026 Posted by No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

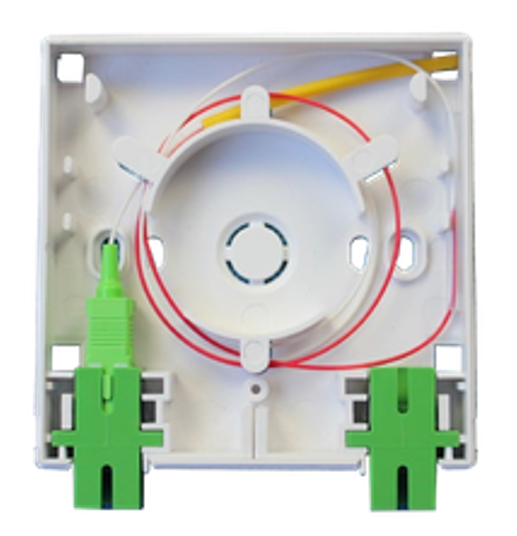

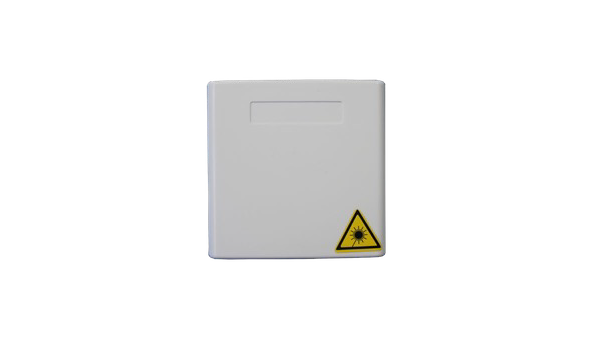

GTTH-001 Wall Outlet

June 19th, 2026 Posted by No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

  • Economic FTTH termination unit for residential and business use
  • Supports up to 2 fibers with 2 SC adapters
  • Compact, wall-mounted design (86 × 86 × 19 mm)
  • 4 input cable ports, max cable diameter 5 mm
  • Cable entry from both sides for flexibility
  • Removable cover for easy access and installation
  • Low-profile design suitable for small to large premises

Rack Mount Fiber Optic – GMP2

June 16th, 2026 Posted by No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A


Features:

  • 19-inch rack mount compatible with ST, SC, LC, MTRJ, and FC adapters
  • Model GMP 2-16: 2 inputs and 16 outputs
  • Model GMP 2-32: 2 inputs and 32 outputs
Model No. Max Capacity of Single Fiber Adaptor Material
GMP2-16 16 SC/FC Duplex Cold-rolled Material
GMP-32 32

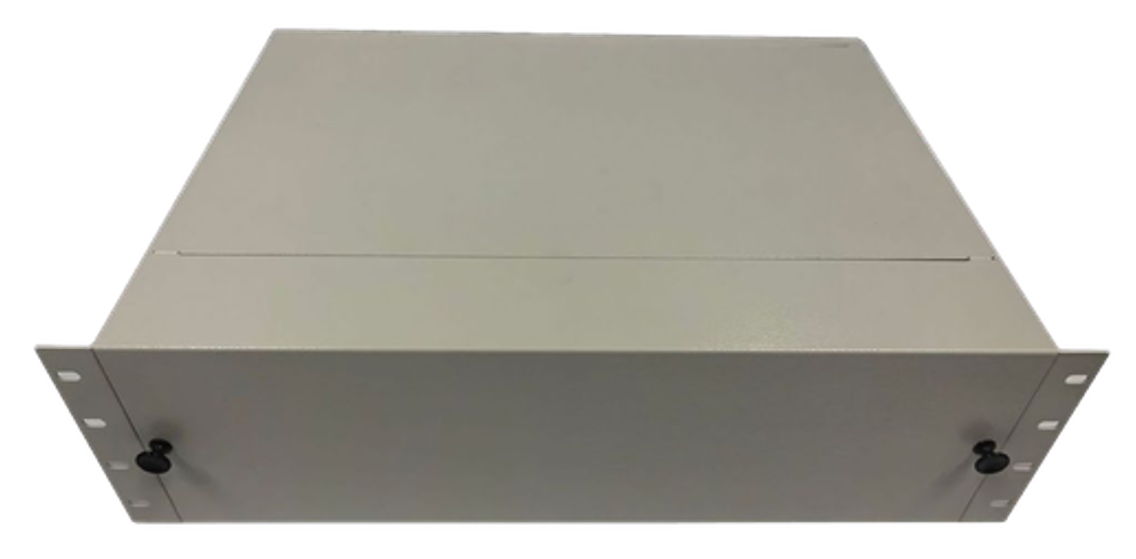

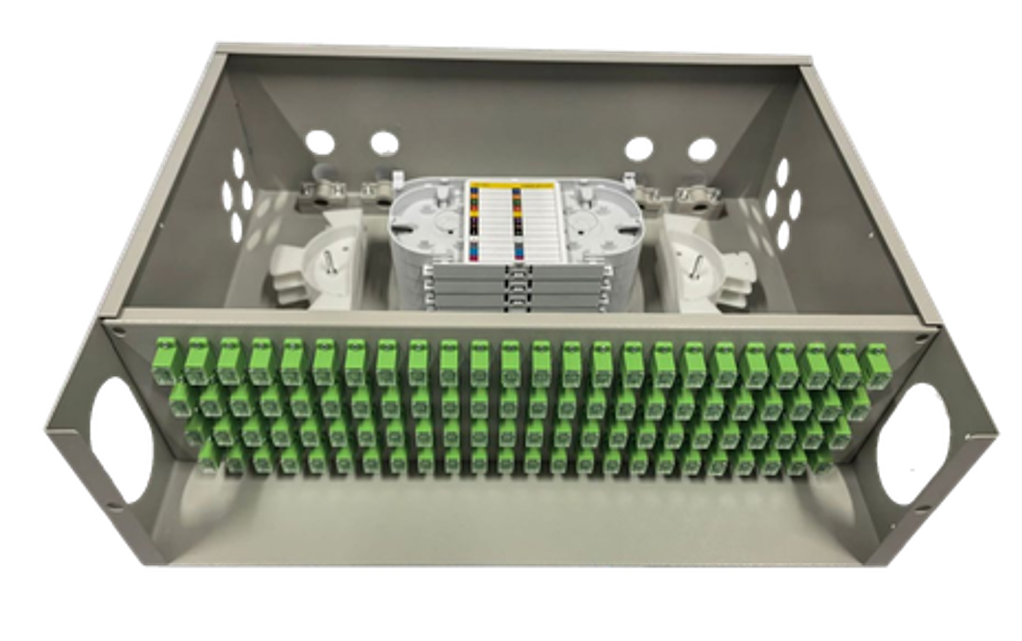

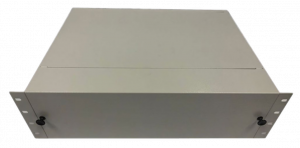

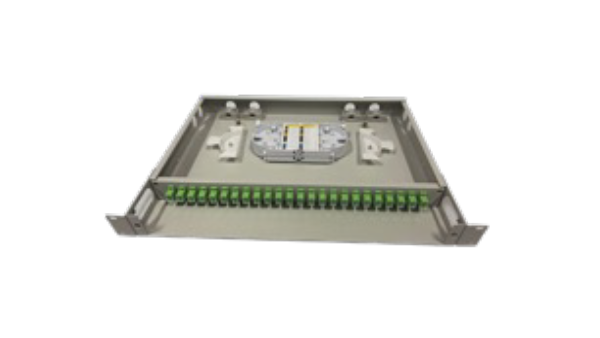

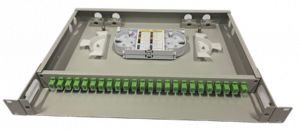

Rack Mount Fiber Optic Frame – GMP

June 16th, 2026 Posted by No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

REQUEST A QUOTE

Rack Mount

19″ rack mount for ST, SC, LC, MTRJ, FC adapters; fixed (non-sliding) design.

Features:

  • Standard size, lightweight, and well-structured design
  • Compatible with ribbon and single fiber
  • Compact design for space saving
  • Supports various panel plates for different adapter interfaces
Model No. Max Capacity of Single Fiber Adaptor Material
GMP-8 8 SC/FC Duplex Cold-rolled Material
GMP-16 16
GMP-24 24
GMP-48 48
GMP-72 72
GMP-96 96

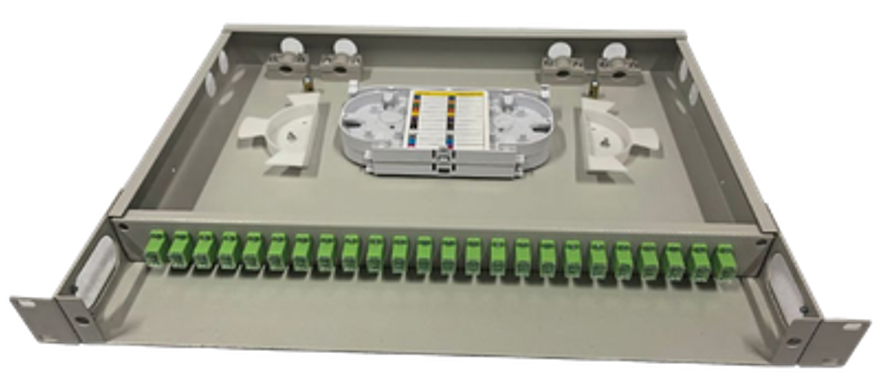

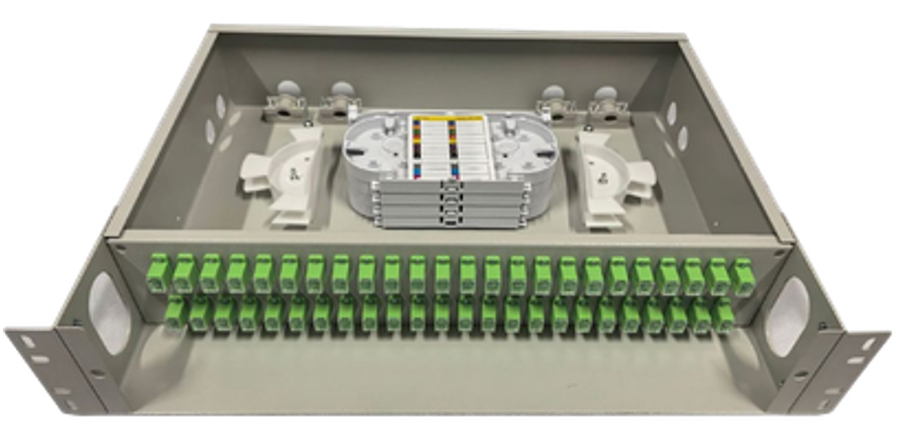

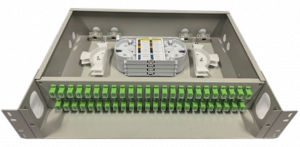

Rack Mount Fiber Optic Frame – GMPS

June 16th, 2026 Posted by No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

Rack Mount Fiber Optic Frame

19″ slidable rack-mount with aluminum, self-locking drawer to prevent slipping. Supports ST, SC, LC, MTRJ, and FC adapters. Pull-out tray allows easy fiber access for splicing, testing, and distribution.

Features:

  • Standard size, lightweight, durable design
  • Slide-out drawer for easy cable management
  • Supports ribbon & single fiber
  • Compact, space-saving
  • Interchangeable panels for various adapters
  • Front labeling for easy identification
  • Available in 12–144 fiber capacities
Model No. Max Capacity of Single Fiber Adaptor Material
GMPS-8 8 SC/FC Duplex Cold-rolled Material
GMPS-16 16
GMPS-24 24
GMPS-48 48
GMPS-72 72
GMPS-96 96



DGX Splitter

June 16th, 2026 Posted by No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

Model: DC-DGX-XX-YY

  • XX: Connector type (DC/DPC, DC/PC)
  • YY: Output number & split ratio (%)

Features:

  • For FTTx & HFC applications
  • Up to 16 output ports
  • Low insertion loss
  • Wide range of split ratios
  • 1310–1550 nm dual window
  • Single-mode fiber
  • High-quality connectors

GBS Splitter

June 16th, 2026 Posted by No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

Features

  • Model: DC-GBS-XX-YY
  • XX: Connector type (DC/DPC, DC/PC)
  • YY: Output number & split ratio (%)

Features:

  • Designed for FTTx & HFC applications
  • Up to 64 output ports available
  • Low insertion loss
  • Wide range of split ratios
  • Operates at 1310–1550 nm (dual window)
  • Single-mode fiber
  • High-quality optical connectors

PLC Splitter

June 15th, 2026 Posted by No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

Features

  • Model: GC-GB-XX-YY (XX: connector type; YY: outputs/split ratio)
  • For FTTx & HFC applications
  • Up to 64 output ports
  • Low insertion loss, multiple split ratios
  • 1310–1550 nm dual window
  • Single-mode fiber with high-quality connectors

1×2 Optical Coupler

Split Ratio (%) Tap (dB) Thru (dB) Max Uniformity
50/50 3.7 3.7 0.7
45/55 4.2 3.3 0.7
40/60 4.7 2.9 0.7
35/65 5.3 2.6 0.7
30/70 5.9 2.2 0.7
25/75 6.7 1.9 0.7
20/80 7.7 1.7 0.7
15/85 8.9 1.4 0.7
10/90 10.7 1.2 0.7
05/95 13.7 0.9 0.7

Multi-Port Optical Couplers

Item Split Type Max Insertion Loss (dB) Max Uniformity
1×4 optical coupler Even 7.5 1.5
1×8 optical coupler Even 10.5 1.5
1×16 optical coupler Even 13.5 1.5
1×32 optical coupler Even 16.7 1.5
1×64 optical coupler Even 20 1.8

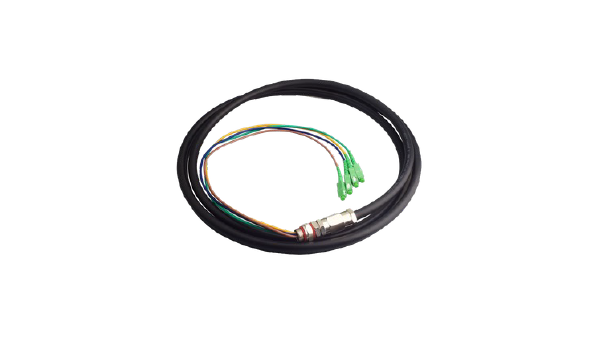

Outdoor Pigtail

June 15th, 2026 Posted by No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

Description

Fiber optic outdoor pigtail built with simplex single-mode fiber for enhanced durability in outdoor environments.

Features

  • Connector options
  • Weather-resistant construction
  • Suitable for outdoor installations

Model No.: P-XX/No.-Y

  • XX: Connector type
  • No.: Fiber cores
  • Y: Cable length

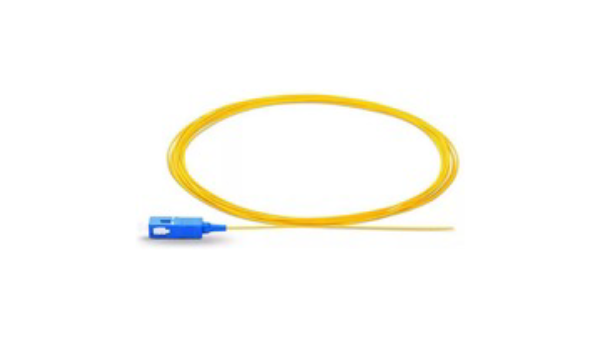

Indoor Pigtail

June 15th, 2026 Posted by No Comment yet

MANUAL

N/A

SPEC SHEET

N/A

USES

N/A

Description

Fiber optic indoor pigtail using simplex single-mode fiber, suitable for splicing and termination applications.

Features

  • Connector options
  • Compact and easy to install
  • High reliability for indoor use

Model No.: P-XX/XX-Y

  • XX: Connector type

Y: Cable length
