Designed for secure fastening of low-voltage cables and multiple conductors, ensuring reliable performance without damaging the cable
Material: Metal / Nylon GA66
GDS 1500:
- Cross-section: 50–70 mm²
- Cable Diameter: 8.0–9.4 mm
- Tension: 15KN
- Material: Metal / Nylon PA66
GDS 2000:
- Cross-section: 70-150 mm²
- Cable Diameter: 9.4-13.8 mm
- Tension: 15KN
- Material: Metal / Nylon PA66
STA:
Cross-section: 1×10 / 1×16 mm²
STB
Cross-section: 2×16 / 2×25 mm²
STC:
Cross-section: 4×16 / 4×25 mm²
STD:
Cross-section: 1×16 / 1×70 mm²
LA2:
Cross-section: 2×6 / 2×16 mm²
DCR-1:
Cross-section: 1×4 / 1×25 mm²
LA2:
Cross-section: 2×6 / 2×16 mm²
DCR-1:
Cross-section: 1×4 / 1×25 mm²
Short Length Tenstion Clamp
Model: GAM08
Material: aluminum
Short Length Tension Clamp
Model: GA06
Material: aluminum/ nylon
Short Length Tension Clamp
Model: GA05
Material: Nylon
| Model No. | Cross-section (mm²) | Tension | Cable Diameter (mm) | Material |

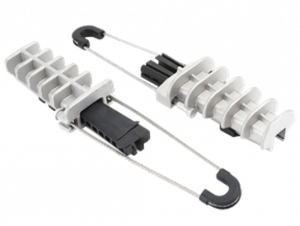

| GG1000A | 16-35 | 10KN | 4.5-6.6 | Metal/Nylon GA66, aluminum alloy |
| GG1000 | 25-35 | 12KN | 5.6-6.6 | |
| GG1500 | 50-70 | 15KN | 8.0-9.4 | |
| GG2000 | 70-150 | 15KN | 9.4-13.8 |
| Model No. | Cross-section (mm²) | Cable Diameter (mm) | Material |

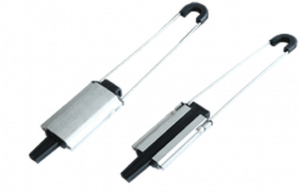

| GG-1000 | 16-50 | 4.5-8 | Metal/Nylon GA66, aluminum alloy |
| GG-2200 | 80-95 | 10.0-11.0 | |
| GGB-1 | 70-120 | 9.4-12.3 |
